Waste Beverage Bottle Washing Drying Plastic Pet Recycling Machine

Contactez

Waste Beverage Bottle Washing Drying Plastic Pet Recycling Machine

Quantité de commande min :	1	Prix :	$160,000.00/sets 1-1 sets
Détails d'emballage :	Emballage standard à l'exportation ou Emballage sur mesure	Délai de livraison :	90 jours ouvrables
Conditions de paiement :	LC, T/T	Capacité d'approvisionnement :	30 ensembles/sets par mois

Lieu d'origine:	Jiangsu, Chine	Nom de marque:	MOOGE
Certification:	CE	Numéro de modèle:	MT

Détail Infomation
Application:	Recyclage des bouteilles en PET	Condition:	Nouveau
Niveau automatique:	Automatique	type de plastique:	ANIMAL DE COMPAGNIE
Capacité de production (kg / h):	500 - 5000	Type de machine:	Ligne de lavage de bouteilles PET
Liste des équipements:	Machine de déshydratation, réservoir flottant de lavage, séchoir à air chaud, laveuse à friction, sé	Capacité de production maximale (kg/h):	5000
Tension:	personnalisé	Dimension (llh):	62m x 5m x 4,5m
Puissance (kW):	400	poids (t):	20
Garantie:	12 mois	arguments de vente clés:	Productivité élevée
Inspection vidéo à la sortie:	Fourni	Industries applicables:	machines de recyclage des déchets plastiques
Emplacement de la salle d'exposition:	La Turquie, l'Italie, le Vietnam, le Brésil, le Mexique, la Thaïlande, l'Argentine, la Colombie, l'U	Rapport d'essai de machines:	Pas disponible
Type de commercialisation:	Produit ordinaire	Garantie des composants principaux:	1 an
Composants de base:	PLC, roulement, boîte de vitesses, moteur, engrenage	Couleur:	personnalisé
Marque du moteur:	Simens ou sur mesure	Contrôle de vitesse:	Contrôle de l'onduleur
Marque de roulement:	HRB ou personnalisé	Matériau de la pièce de lavage:	Acier inoxydable ou acier au carbone
Le pouvoir de l'homme:	6 à 10 personnes	Taille finale des flocons:	12 à 14 mm
Utilisation de la vapeur:	Facultatif	Mode de chauffage:	électricité, vapeur ou source
Teneur en humidité:	1%	Service après garantie:	Support technique vidéo, support en ligne
Emplacement du service local:	Égypte, Vietnam, Philippines, Pérou, Pakistan, Inde, Mexique, Thaïlande, Bangladesh, Afrique du Sud,	Port:	Port maritime de Changhaï
Mettre en évidence:	PET bottle recycling machine with dryer , plastic crusher machine for beverage bottles , waste bottle washing drying machine

Description de produit

Product Overview

This MT-series Waste Beverage Bottle Washing Drying Plastic Pet Recycling Machine is mainly used to recycling the waste PET bottles, water bottles, cola bottles, PET sheet and PET packing containers, etc. The Waste Plastic Recycling Plant Scrap Pet Bottle Recycle Washing Line can easily remove the labels, caps, rings, glue, dirties and other impurities off from the pet plastic, finally we will get ideal PET flakes with good quality for reuse.

Product Specification

The Waste Plastic Recycling Plant Scrap Pet Bottle Recycle Washing Line we made with capacity from 500kg/h to 5000 kg/h.
We can design the machine layout into "L" or "U" shape according to buyer's actual factory area and requirements.

Model	Capacity	Installed Power	Steam Use	Water Supply	Manpower	Area Required
MT-500	500 kg/hr	190 KW	Optional	4-5 m3/hr	4-6 Person	6055 m
MT-1000	1000 kg/hr	260 KW	Optional	5-7 m3/hr	8-10 Person	8085 m
MT-2000	2000 kg/hr	400 KW	Suggest Use	10-15 m3/hr	10-12 Person	8085 m
MT-3000	3000 kg/hr	600 KW	80,000 Kcal	20-30 m3/hr	12-16 Person	100810 m
MT-4000	4000 kg/hr	800 KW	100,000 Kcal	30-40 m3/hr	15-20 Person	1351010 m
MT-5000	5000 kg/hr	1000 KW	120,000 Kcal	40-50 m3/hr	15-20 Person	1351010 m

We adopted well-known brand for the main motor, necessary parts of the machine.We manufacture the machine strictly according to the technical drawings and we can also make the components as buyer request

Item	Specification
Raw Material	Waste Rigid Plastic PET bottles, PET sheet, PET packages, etc
Finished Product	Clean dry plastic flakes (size can be recycled as buyer request)
Main Machine List	Bale Opener, Trommel, Label Remover Machine, Sorting Belt, Pre-washer Machine, Belt Conveyor, Crusher, Cold Washing Tank, High Speed Friction Washer, Hot Washing Tank, Centrifugal Dryer, Zig-zag Air Classifier, Color Sorter, Packing Silo
Machine Material	Machine frame is made by carbon steel, the machine washing part is made by SUS 304
Main Components	NSK/SKF bearing, TTO oil sealing, Guomao reducer,etc.
Electric Components	ABB/Delta inverter, Omron temperature meter, Schneider contactor, Chint switch, Siemens made in China motor, etc.
Warranty Period	One Year from the Machine Operation within 18 Months from the B/L Date
Turnkey After Service	Technical Support including the machine layout, electric diagram, working manual, engineer available to buyer's factory overseas for helping installation, commissioning, training workers, etc. consumable parts provided; 24-hours online after sale service;

Features At-A-Glance

Bale Opener Machine

Function: Open the pressed PET bales

>With 4 roller cylinder feeding the bottles equally, claw steel is very strong with 20mm thickness.

>Machine chamber made by solid strong steel, chamber size 1.6*1.6m (depth x width).
>We can make it with forklift working platform to push the bales, or with a hopper for temporary store the bales.

Label Remover Machine

Function:remove the labels from the bottles

>Blades made by tungsten carbide and are fixed by screw easy to adjust and replace

>The barrel designed with hydraulic system to lift up the chamber which is convenient to replace the blades

>The machine bottom with holes to drain out liquid which contained in the bottles, good for machine use

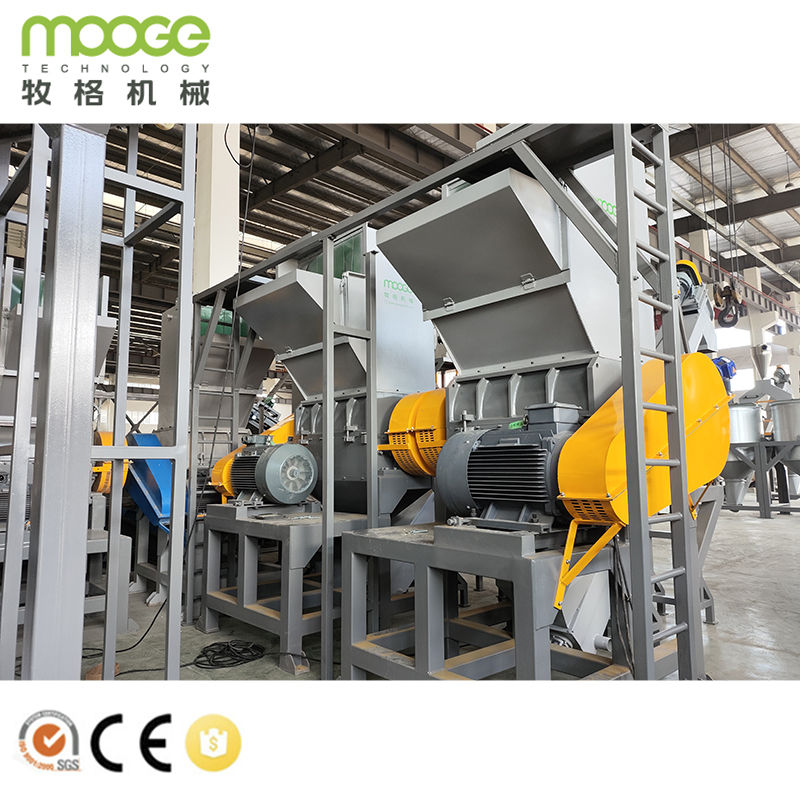

Plastic Crusher Machine

Function: crushing the PET bottles to small flakes.

>With water inlet doing the wet grinding which can extend the blades lifespan, reduce the dust generation.

>Crusher upper hopper opened by screw motor which save manpower

>Bearing house is installed outside of the crusher chamber so no dirty goes inside for longer use.

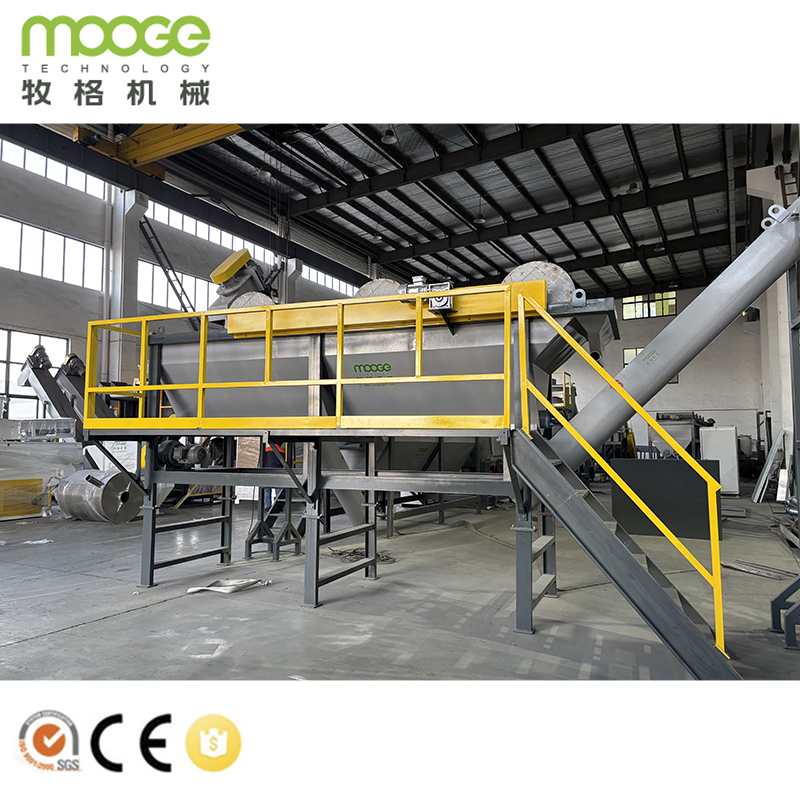

Floating Washing Tank

Function: with cold water washing out dirty from the flakes

>With the top rollers automatically take out the caps and rings and other impurities but with less water taken out

>Rotor shaft made by seamless steel tube.
>Screw is made by stainless steel, we have different model of floating washing tank according to your requirements.

Hot Washing Tank

Function: with hot water washing to remove oil/glue and other dirty from the flakes.
>The tank made with insulation layer to keep the hot water temperature and save energy.
>Feeding caustic soda or chemical detergent to washing the bottle flakes for better effect
>The water is heated up by steam, steam is generated by the steam boiler

Horizontal Dewatering Machine

Function: take out dirty and remover water from the bottle flakes

>With high raotary speed reach up to 1500rpm with better effect for removing the water

>With the famous SKF roller bearing fixed outside for long lifespan

>Inside with mesh layer made by SUS304, which is also cleaned by the water spray system

Customer Onsite

We sold the plastic recycling machine to hundreds of buyers from more than 100 countries in the world. Our high quality machine and good service are all well received by numerous customers from domestic and overseas. And we are expecting to seek the long-term business partner all over the world.

FAQ

What kind of machine do you want? Plastic washing line? Plastic pelletizing line? Shredder? Crusher? Or other machine?
What material do you want to recycling? PE film? PP woven bag? HDPE/PP bottle? PET bottle? or other plastic? Can you please send material photos for our reference?
What capacity (kg/h) do you want for the machine? We have 300kg/h, 500kg/h, 1000kg/h or larger…
What is the product final size (mm) do you want? Normally, plastic film/bags pieces is 30-50mm, plastic bottle flakes is 14mm, plastic pellet is 3mm…
Other special requirements such as the machine color, machine motor brand, layout design…
