Automatic PP PE Film Washing Line for Plastic Recycling

Contactez

Automatic PP PE Film Washing Line for Plastic Recycling

Quantité de commande min :	1	Prix :	USD 77000 ONE SET
Détails d'emballage :	Cartonné	Délai de livraison :	75-80 jours
Conditions de paiement :	L/C, D/P, T/T	Capacité d'approvisionnement :	1 SET par 75 à 80 jours

Lieu d'origine:	Chine	Nom de marque:	MOOGE
Certification:	CE	Numéro de modèle:	MEB

Détail Infomation
Matériaux:	Films en PE de type PP	Produits finis:	Des flocons de plastique propres
Port:	Shanghai	Garantie:	1 an
Grade automatique:	Automatique
Mettre en évidence:	automatic PP PE film washing line , plastic recycling washing machine , PE film recycling equipment

Description de produit

Why Choose Us

Our company is one of the national high-tech enterprises, we have obtained many national invention patents, and has our registered
trademark and also the CE, SGS, ISO certification for our plastic recycling machines.

Product Overview

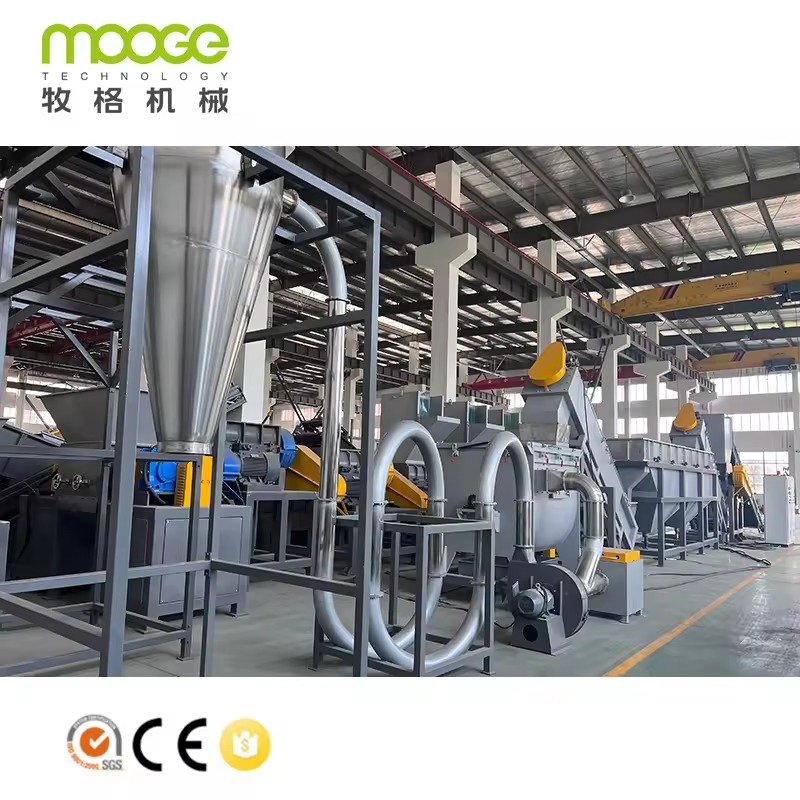

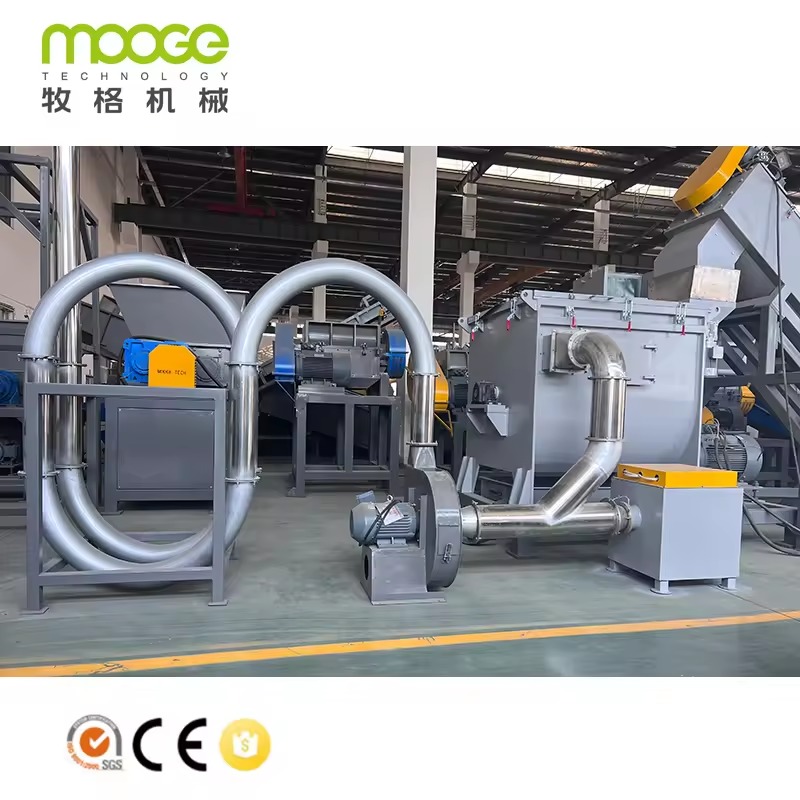

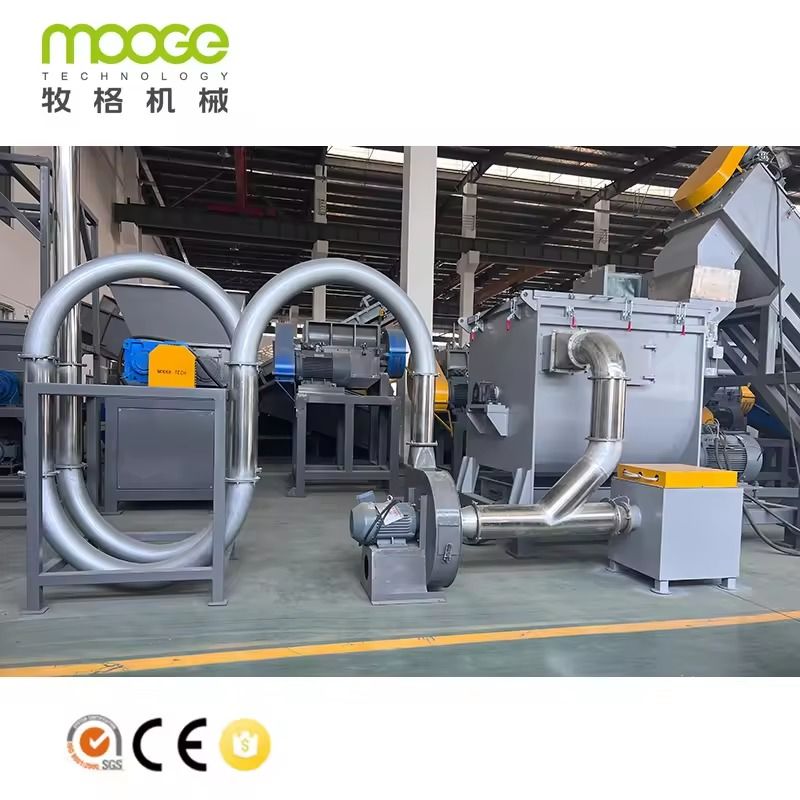

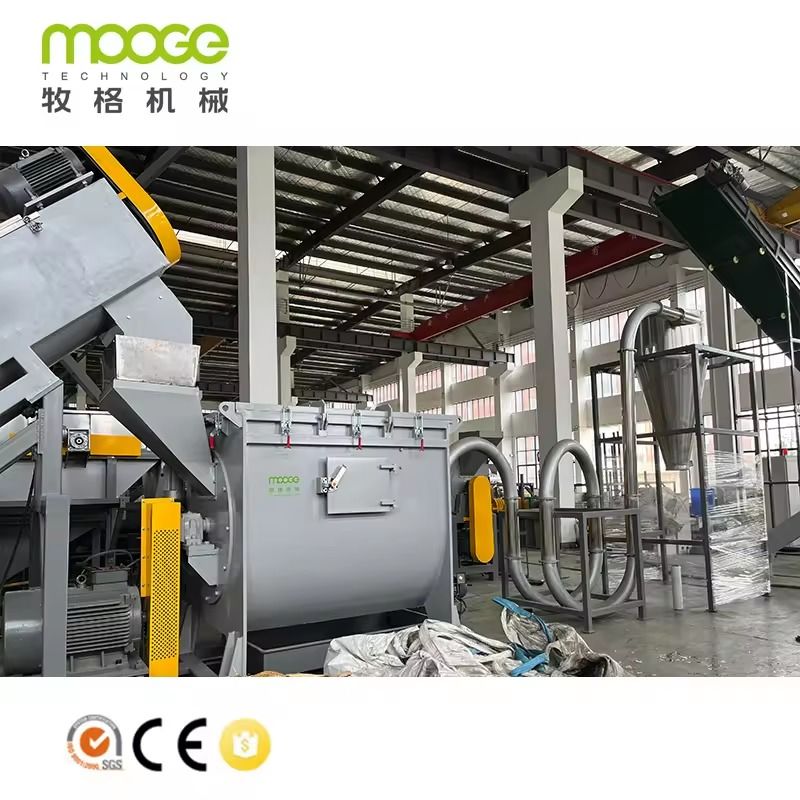

This Waste Plastic Pp Pe Hdpe Bottle Chips Recycling Machine Line is used to recycling the waste HDPE PE Bottles and buckets, PP hollow container, ABS rigid plastic and so on.The whole recycling line including the conveyor belt, metal detector, plastic wet
crusher, cold water washing tank, high speed friction washer, centrifugal dryer machine, hot air drying system and label separator
machine, material collecting packing system.

After crushing, washing and drying, the waste dirty rigid plastic will turn to be small clean dry plastic flakes with size range from 10-16mm, we can also make the size reduction as you requirement. Automatic PP PE Film Washing Line for Plastic Recycling 4

Product Specification

The Hdpe Bottle Recycling Pp Pe Bottle Barrel Crushing Washing Machine we made with capacity from 300kg/h to 3000 kg/h.
We can design the machine layout into "L" or "U" shape according to buyer's requirements.

Model	Capacity	Installed Power	Water Supply	Area Required
ME-300	300kg/hr	130KW	5-6m³/hr	384.55m
ME-500	500kg/hr	145KW	7-8m³/hr	384.55m
ME-1000	1000kg/hr	190KW	8-10m³/hr	4255m
ME-1500	1500kg/hr	230KW	10-15m³/hr	4555m
ME-2000	2000kg/hr	280KW	15-20m³/hr	4555m

We adopted well-known brand for the main motor, necessary parts of the machine.We manufacture the machine strictly according to the technical drawings and we can also make the components as buyer request

Item	Specification
Raw Material	Waste Soft Plastic PE film, HDPE film, PP woven bags, PP film, PP jumbo bags, etc
Finished Product	Clean dry plastic flakes (size can be recycled as buyer request)
Main Machine List	Belt Conveyor, Shredder, Crusher, Cold Washing Tank, High Speed Friction Washer, Hot Washing Tank, Centrifugal Dryer, Hot Air Pipeline, Packing Silo
Machine Material	Machine frame is made by carbon steel, the machine washing part is made by SUS 304
Main Components	NSK/SKF bearing, TTO oil sealing, Guomao reducer,etc.
Electric Components	ABB/Delta inverter, Omron temperature meter, Schneider contactor, Chint switch, Siemens made in China motor, etc.
Warranty Period	One Year from the Machine Operation within 18 Months from the B/L Date
Turnkey After Service	Technical Support including the machine layout, electric diagram, working manual, engineer available to buyer's factory overseas for helping installation, commissioning, training workers, etc. consumable parts provided; 24-hours online after sale service;

Details Images

Plastic Crusher Machine

Function: crushing the material into flakes

>With water inlet can do wet crushing

>Use big roller bearing ensure durable use

>With heavy duty pulley easier for machine working
>Bearing house is installed outside of the chamber so no dirty goes inside which prolong the lifespan
> Upside hopper is covered by shelter so no flakes popped out.

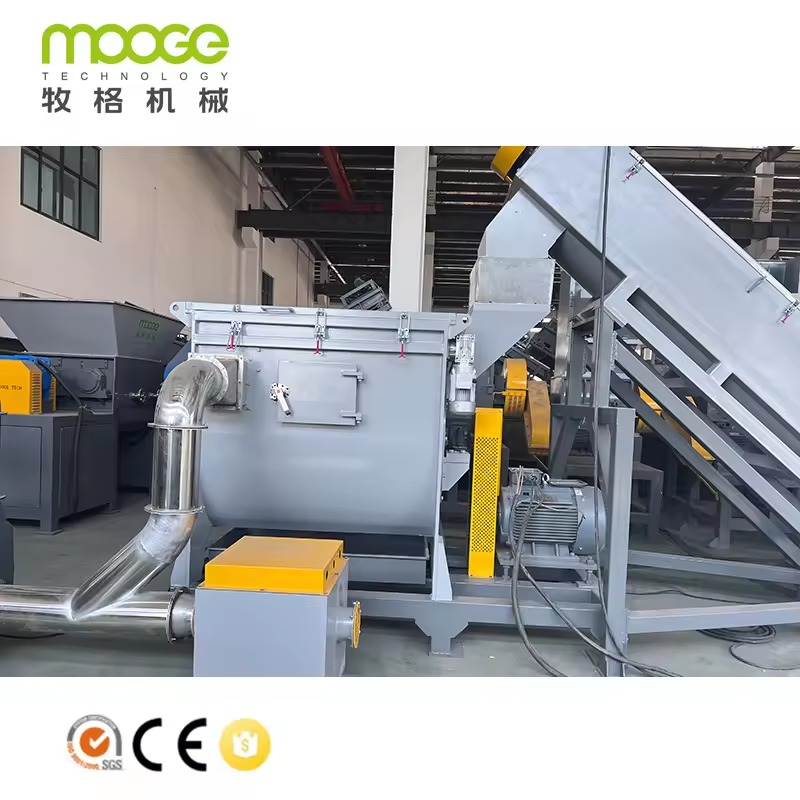

Friction Washing Loader

Function: Friction washing the material and loading up it

>With water injection system into the rotor for better washing and also clean the screen mesh
>The screen is with fast clip to tight and loose for easy maintenance
>Up and down both mounted with bearing design ensure low maintenance and long use life

>Material contact with water are made of SUS304

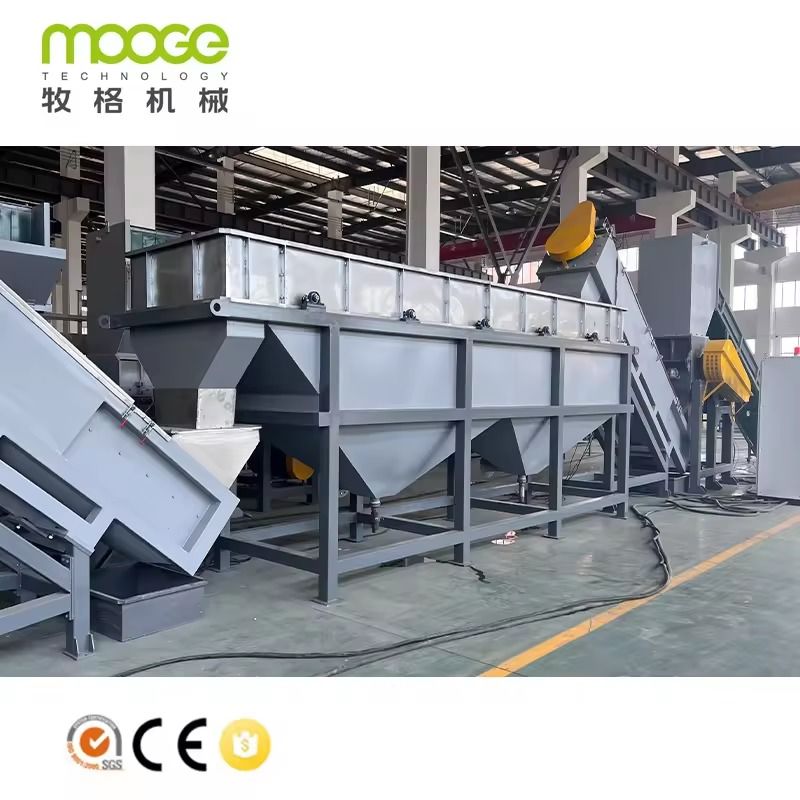

Floating Washing Tank

Function: Floating washing separate the sand, soil and other dirties

>The roller is specially made can have more washing for flakes but less water take out
>Bottom with positive and negative screw to pushing the dirty which is easy for the side screw loader to loading out

>The washing tank can be made with cover and double layer temperature protection for hot water washing

Horizontal Dewatering Machine

Function: take out dirty and remover water from the bottle flakes

>With high rotary speed 1500rpm

>Roller bearing is fixed outside of the rotor for durable use
>Inside with mesh layer, mesh diameter size: 3mm
>With water spray system to clean the mesh
>Outside cover drum is made by stainless steel with 3mm thickness

“Zig-zag” Label Separator

Function: The fine dust separator machine will remove the final labels from the flakes to reduce the PVC content.

>Blower with air valve to control the air flux of blower.
>Bottom with air blower and pipe for collecting the pet flakes
>Zig zag main chamber one set made by stainless steel and with visible window
