Rigid Plastic Recycling Double Stage Water Ring Granulating Line

Contactez

Rigid Plastic Recycling Double Stage Water Ring Granulating Line

Quantité de commande min :	1 ensemble	Prix :	USD 54,000 – 57,000 / Set (depending On Capacity & Configuration)
Détails d'emballage :	Emballage standard d'exportation/caisse en bois/emballage sous film	Délai de livraison :	75-80 jours
Conditions de paiement :	LC, D/P, T/T	Capacité d'approvisionnement :	1 set par 65-85 jours

Lieu d'origine:	Chine	Nom de marque:	MOOGE
Certification:	CE	Numéro de modèle:	YSS

Détail Infomation
Rapport d'essai de machines:	Fourni	Matériel:	PEHD, PE/PP, PEBDL, ABS/PP, PP, ABS
Service après-vente assuré:	Clôture de sécurité	Produit final:	Granulés de plastique propres
brand name:	MOOGE	Garantie:	1 an
Onduleur:	ABB	Capacité:	Varie selon le modèle, généralement 100 à 1 000 kg/heure
Mettre en évidence:	rigid plastic pelletizing machine , double stage water ring granulator , recycling plastic granulating line

Description de produit

Product Overview

Rigid Plastic Two Stage Water Ring Pelletizing Line

Rigid Plastic Two Stage Water Ring Pelletizing Line is designed for recycling PP, PE, HDPE, LDPE and other rigid plastic waste, such as crushed plastic flakes, bottle flakes, barrel flakes, injection scraps and hard plastic materials.

The double-stage extrusion system provides better melting, plasticizing, degassing and filtration performance. The water ring pelletizing system can produce uniform recycled plastic pellets with stable cutting performance. The final pellets can be used for extrusion, injection molding, blow molding and other plastic production.

Machine capacity, voltage, screw design, pelletizing system and layout can be customized according to customer raw material condition and production requirements.

Specification

Applications

PP PE Rigid Plastic Two Stage Water Ring Pelletizing Line is widely used for recycling and pelletizing PP, PE, HDPE, LDPE and other rigid plastic waste. It is suitable for processing crushed plastic flakes, bottle flakes, barrel flakes, plastic container flakes, injection scraps, blow molding waste, pipe scraps, sheet scraps and other hard plastic materials.

The final recycled plastic pellets can be used for injection molding, blow molding, pipe extrusion, sheet extrusion, profile extrusion, plastic container production, plastic barrel production, recycled plastic product manufacturing and further plastic processing.

This pelletizing line is suitable for plastic recycling plants, plastic pelletizing factories, injection molding factories, blow molding factories, plastic product manufacturers, waste plastic collection centers and recycled plastic material suppliers.

Technical Specifications

Model	Screw Diameter	Screw L/D	Main Motor Power	Capacity Kg/hr
YSS-SJ85	85mm	25-33:1	37KW	100-150
YSS-SJ100	100mm	25-33:1	55KW	150-200
YSS-SJ120	120mm	25-33:1	75KW	250-300
YSS-SJ150	150mm	25-33:1	90KW	300-400
YSS-SJ150	150mm	25-33:1	110KW	400-500
YSS-SJ160	160mm	25-33:1	132KW	500-600
YSS-SJ180	180mm	25-33:1	160KW	600-800
YSS-SJ200	200mm	25-33:1	200KW	800-1000

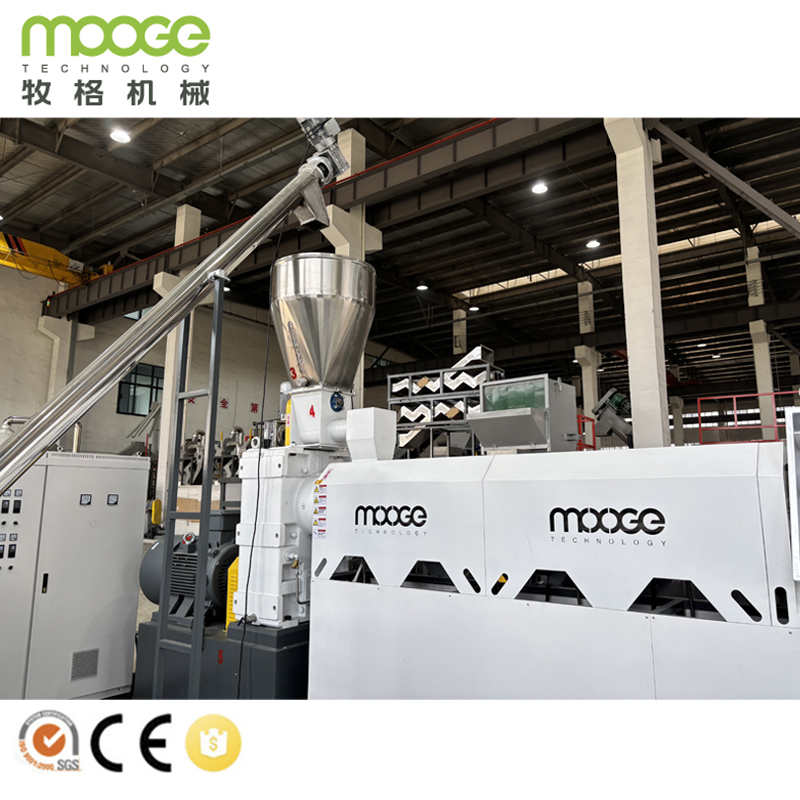

Screw loader and Dosing Feeder

Use to loading flakes into dosing feedingDosing feeding the material into exturder
Keep the exturder more stable working

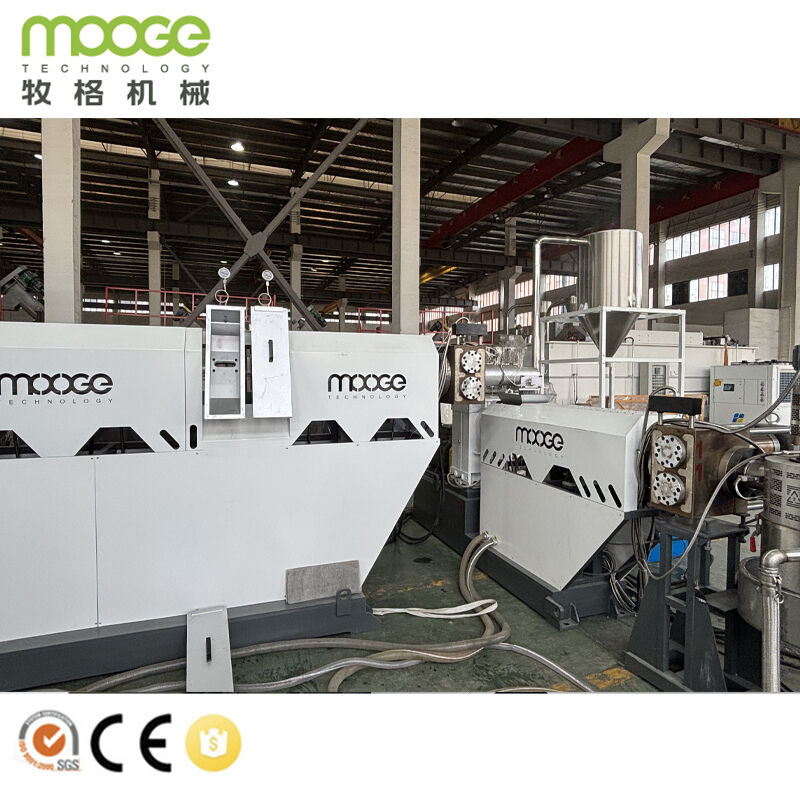

Rigid Plastic Recycling Double Stage Water Ring Granulating Line 0

Single Screw Extruder

The single screw extruder is built with a strong and heavy-duty frame to ensure stable operation without vibration during machine running. The complete frame, where the gearbox, motor and screw system are installed, is precisely milled to improve installation accuracy and machine stability. The frame is made of square steel tubes with thick steel plates on the top, providing high strength, durability and long service life.

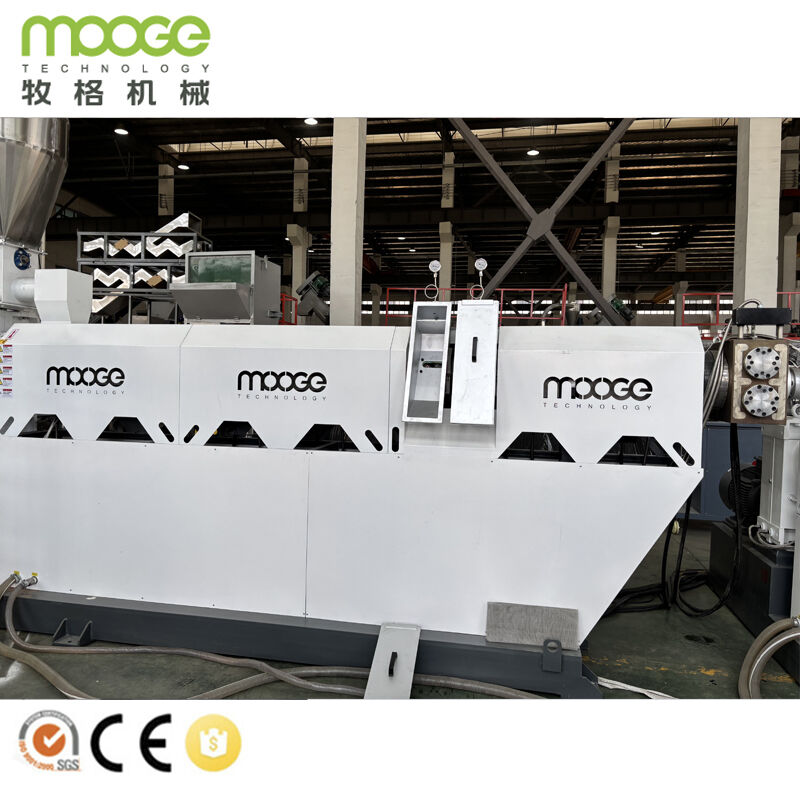

Rigid Plastic Recycling Double Stage Water Ring Granulating Line 1

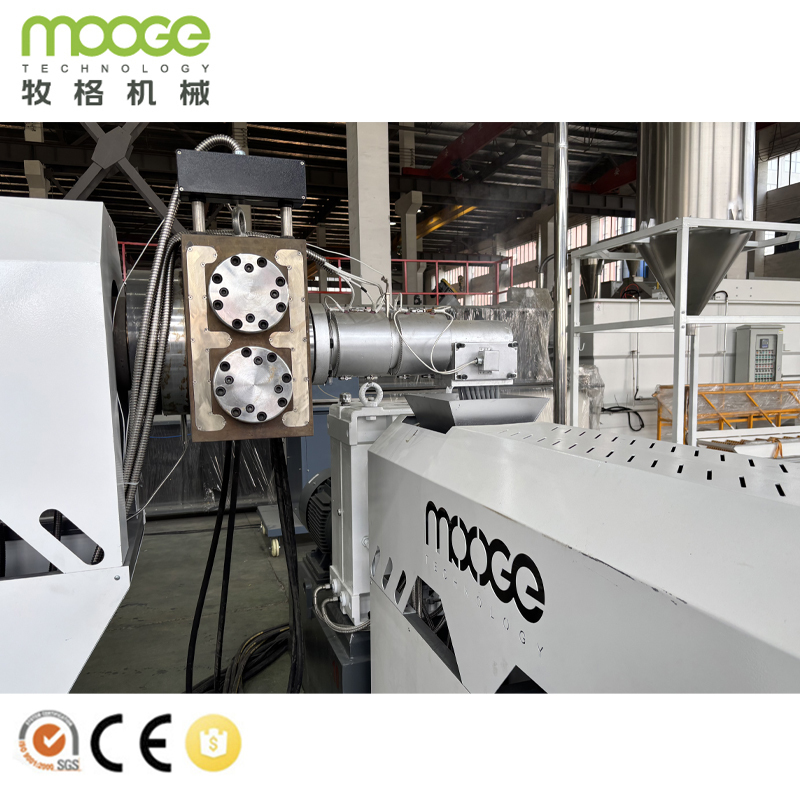

Hydraulic Screen Changer

Function: Filtering material impurity

Double position single board model

Rigid Plastic Recycling Double Stage Water Ring Granulating Line 2

Die face Cutting And Water Cooling Tank

Cutting melted plastic directly at the die face and cooling the pellets by circulating water to produce uniform recycled plastic pellets.

Rigid Plastic Recycling Double Stage Water Ring Granulating Line 3

Company Profile

Rigid Plastic Recycling Double Stage Water Ring Granulating Line 4

Customized Solution

We can provide customized recycling solutions according to different customer requirements.

To recommend a suitable solution, please tell us:

What material do you want to recycle?
What is the material size?
Is the material clean or dirty?
What capacity do you need per hour?
What is your final product requirement?
Do you need a complete washing line or single machine?

According to your information, we can design a suitable process flow and machine configuration.

Why Choose Us

Complete plastic recycling solution
Customized machine configuration
Practical process design
Stable machine performance
Suitable for different plastic materials
Factory layout support
Installation and operation guidance
Timely after-sales service

Our company is one of the national high-tech enterprises, we have obtained many national invention patents, and has our registered
trademark and also the CE, SGS, ISO certification for our plastic recycling machines.

Contact Us

If you are interested in this plastic recycling washing line, please contact us.

Please send us your raw material photos, required capacity and final product requirement.
We will recommend a suitable machine configuration and quotation for you.

Contact us now to get a customized plastic recycling solution.
